| Impedance | 50 Ohms |
| Operating Frequency | DC – 50 GHz |
| VSWR | 1.15 |
| Conductor | Beryllium Copper( BeCu) |
| Insulation | PEI/PTFE |
| Body | Stainless Steel, Passivation |
| Mating Cycles | 500 times |
| Attachment | For PCB, Replaceable |

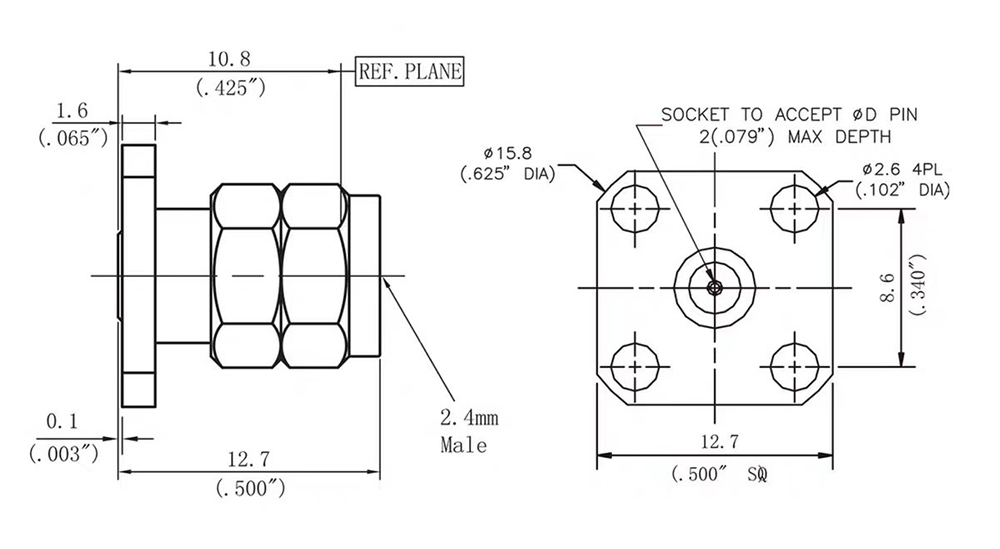

A full series of dimension available.
| Raynool P/N | Diameter D |
| RF-24M-04-30 | 0.3 mm |
| RF-24M-04-51 | 0.51 mm |
| RF-24M-04-XX | XX mm, Contact Raynool sales for customization |
