2.92mm Attenuator, 3.5mm Attenuator, SMA Attenuator.
| Product Type | Pictures | Dimensions | Specification |

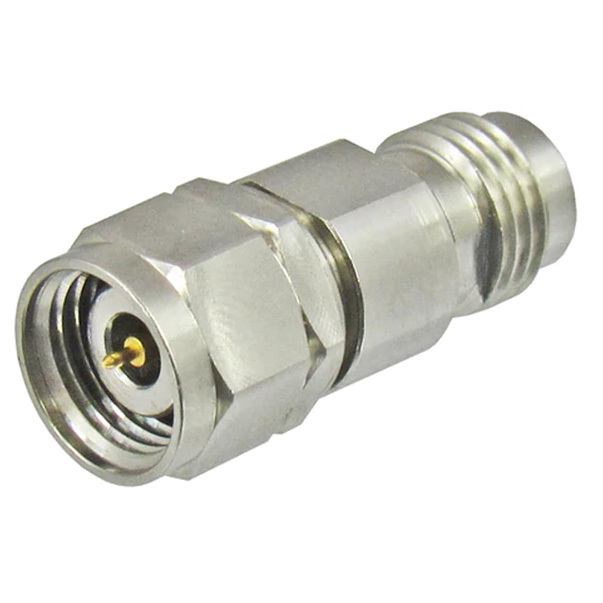

| 2.92mm Attenuator, DC-40 GHz, 2W Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@40 GHz, Typ.: 1.20 Attenuation Accuracy: ±0.8 dB, 1-10 dB ±1.5 dB, 12-30 dB |
| 2.92mm Attenuator, DC-40 GHz, 2W Economic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.40@40GHz. Attenuation Accuracy: ±1.0 dB, 1-10 dB ±1.5 dB, 12-30 dB |
| 3.5mm Attenuator, DC-27 GHz, 2W Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@27GHz. Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMA Attenuator, DC-8 GHz, 2W Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.25@8GHz. Typ. <1.20 Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.75 dB, 12-30 dB ±1.0 dB, 40 dB |

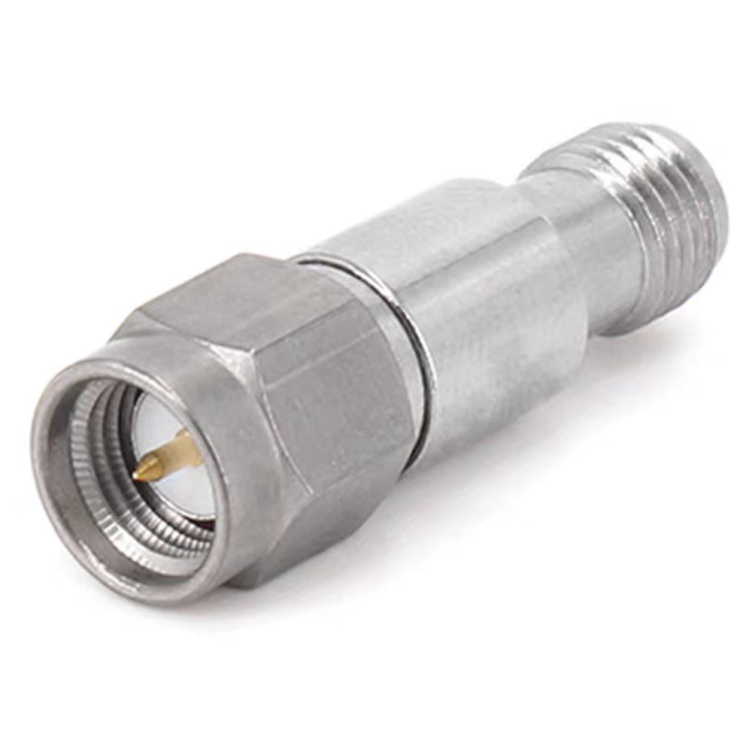

| SMA Attenuator, DC-18 GHz, 2W Precison |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMA Attenuator, DC-18 GHz, 2W Precison |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |

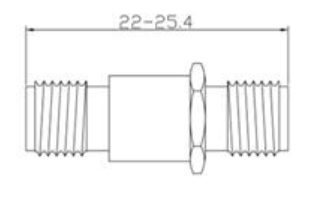

| SMA Attenuator, DC-18 GHz, 2W Precison Female to Female |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMA Attenuator, DC-18 GHz, 2W Precison Male to Male |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |

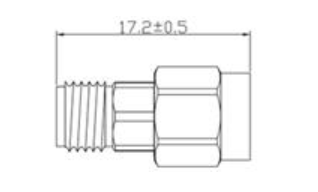

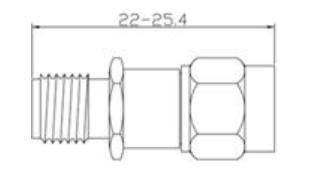

| SMA Attenuator, DC-18 GHz, 2W Precison Short Version |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMA Attenuator, DC-18 GHz, 2W Precison Hex Version |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |

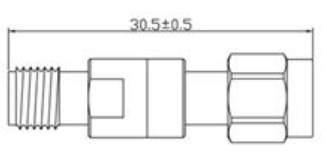

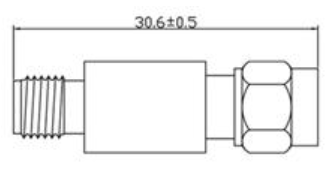

| SMA Attenuator, DC-18 GHz, 2W Precison Large Dimension Version |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| 3.5mm Attenuator, DC-27 GHz, 2W Precison |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE & PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@27GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB |

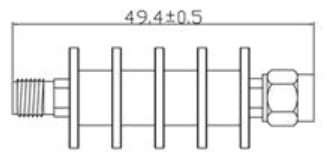

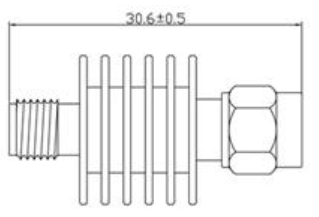

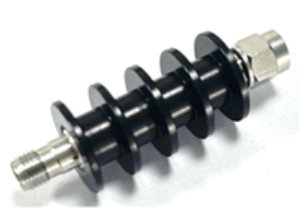

| SMA Attenuator, DC-18 GHz, 5W Precison |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector:Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 5W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMA Attenuator, DC-18 GHz, 10W Precison |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector:Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 10W VSWR: < 1.35@18GHz Attenuation Accuracy: ±0.7 dB, 3,6,10 dB ±1.0 dB, 20, 30 dB |
