Cryogenic SMA Attenuator
| Product Type | Pictures | Dimensions | Specification |

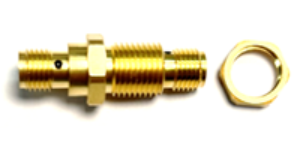

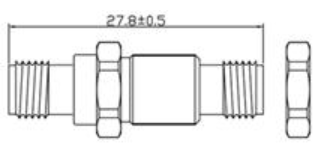

| Cryogenic SMA Attenuator, 2W DC- 18 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: NON Magnetic Copper, Gold plated Power: 2W VSWR: < 1.35@18 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB |

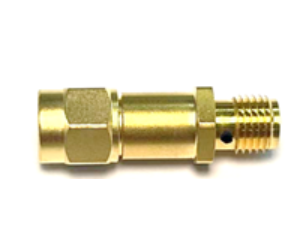

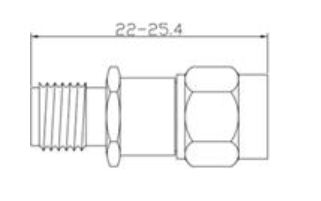

| Cryogenic SMA Attenuator, 2W Female to Female DC- 18 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: NON Magnetic Copper, Gold plated Power: 2W VSWR: < 1.35@18 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±0.8 dB, 12-30 dB |
