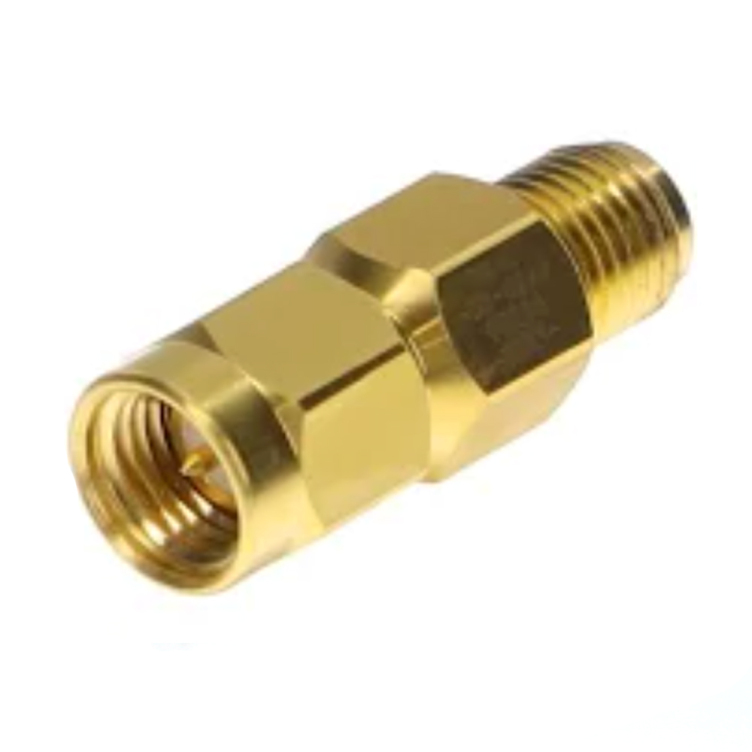

Cryogenic SMA SMP SSMP Attenuator for Quantum Computing

Cryogenic SMA SMP SSMP Attenuator for Quantum Computing

Item No.: 00134
In quantum computing, attenuators are used on the drive lines to reduce noise sources like Johnson-Nyquist noise, particularly in cryogenic systems.
Description
Description
Cryogenic SMA SMP SSMP Attenuator

In quantum computing, attenuators are used on the drive lines to reduce noise sources like Johnson-Nyquist noise, particularly in cryogenic systems.

Cryogenic SMA Attenuator
DC - 18 GHz
2 W
Performance Class: Cryogenic
Conductor: Beryllium Copper, Gold plated.
Dielectric: PTFE
Body: NON Magnetic Copper, Gold plated.

VSWR: < 1.35@ 18 GHz
Attenuation Accuracy: ±0.5 dB (1 - 10 dB), ±0.8(12 - 30 dB)
Cryogenic SMA Attenuator
DC - 18 GHz
2 W
Performance Class: Cryogenic
Conductor: Beryllium Copper, Gold plated.
Dielectric: PTFE
Body: NON Magnetic Copper, Gold plated.

VSWR: < 1.35@ 18 GHz
Attenuation Accuracy: ±0.5 dB (1 - 10 dB), ±0.8(12 - 30 dB)
Cryogenic SMP(GPO) Attenuator
DC - 18 GHz
2 W
Performance Class: Cryogenic
Conductor: Beryllium Copper, Gold plated.
Dielectric: PTFE
Body: NON Magnetic Copper, Gold plated.

VSWR: < 1.35@ 18 GHz
Attenuation Accuracy: ±0.5 dB (1 - 10 dB), ±0.8(12 - 30 dB)
