| Product Type | Pictures | Dimensions | Specification |

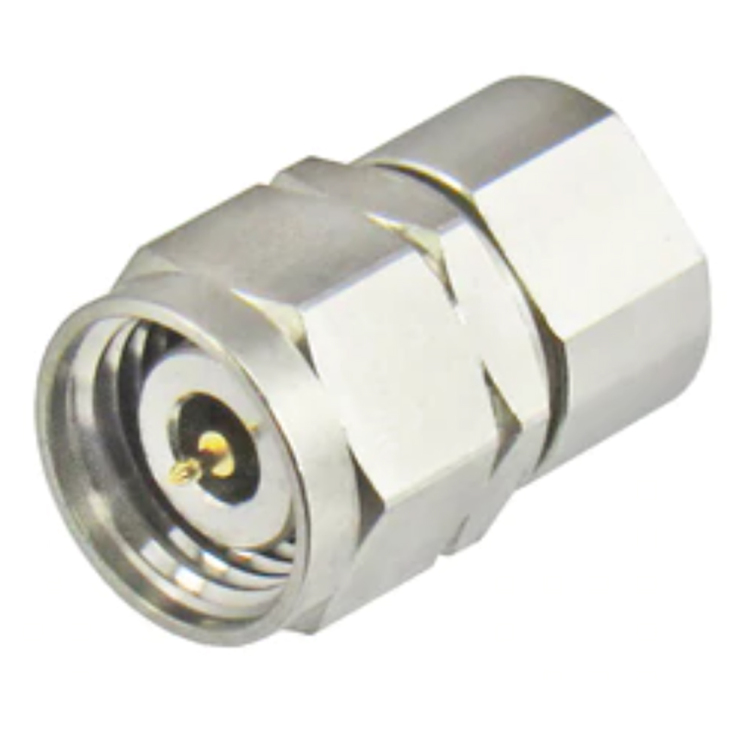

| 2.4 mm Termination, 2W DC- 50 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@50 GHz, Typ. <1.30 |
| 2.4 mm Termination, 2W DC- 50 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@50 GHz, Typ. <1.30 |

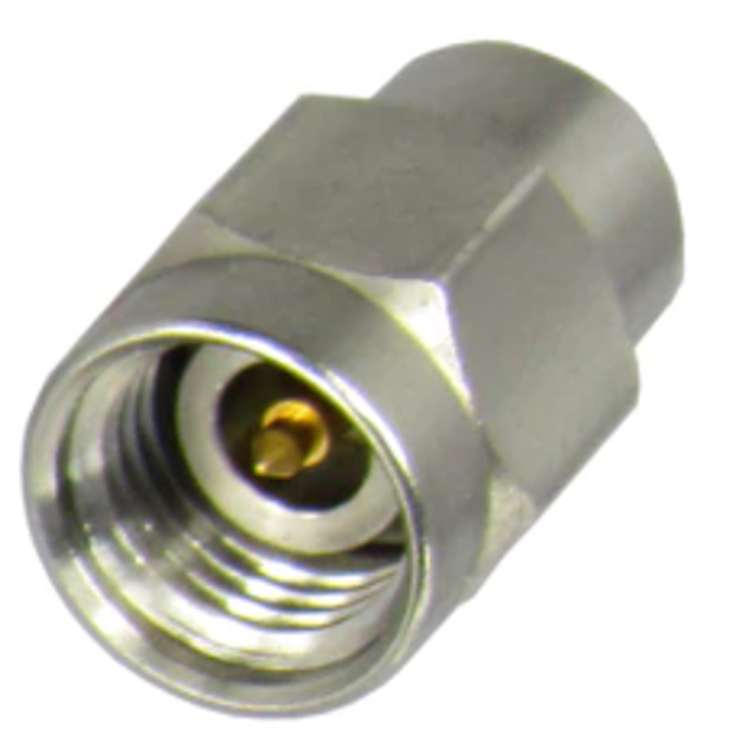

| 2.92 mm Termination, 2W DC- 40 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.25@40 GHz, Typ. <1.20 |
| 2.92 mm Termination, 2W DC- 40 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.25@40 GHz, Typ. <1.20 |
| 2.92 mm Termination, 5W DC- 40 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated, Heat shink, Anodized Aluminum. Power: 2W VSWR: < 1.35@40 GHz, Typ. <1.25 |
| 2.92 mm Termination, 5W DC- 40 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated, Heat shink, Anodized Aluminum. Power: 2W VSWR: < 1.35@40 GHz, Typ. <1.25 |
| 3.5mm Termination, 2W DC - 27 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.25@27 GHz, Typ. <1.20 |
| 3.5mm Termination, 2W DC - 27 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PEI Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.25@27 GHz, Typ. <1.20 |
