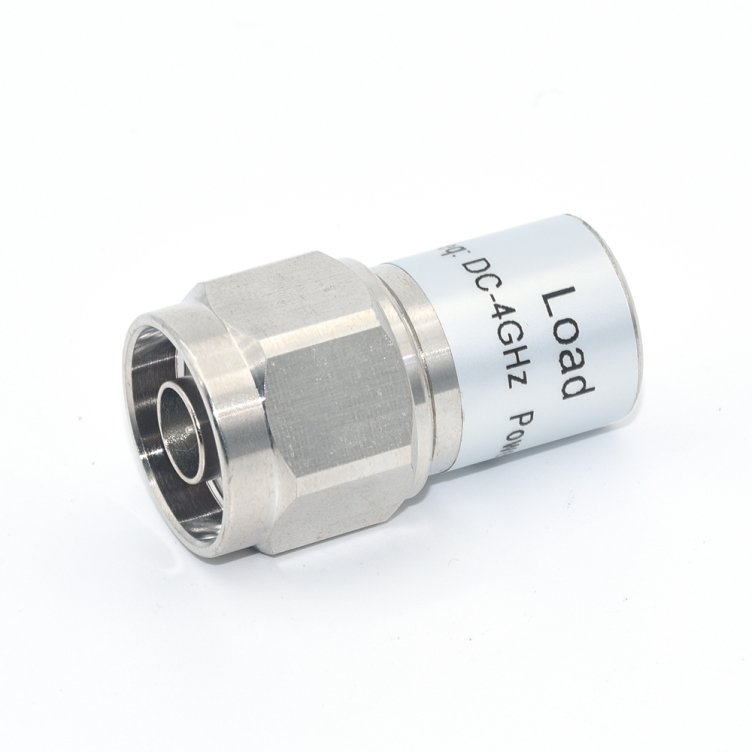

| N Termination, 2W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Ni plated Power: 2W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 2W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Ni plated Power: 2W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 2W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 2W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Stainless Steel, Passivated Power: 2W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 2W DC- 18 GHz Econimic, Combact design |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Ni plated Power: 2W VSWR: < 1.35@18 GHz, Typ. <1.20 |

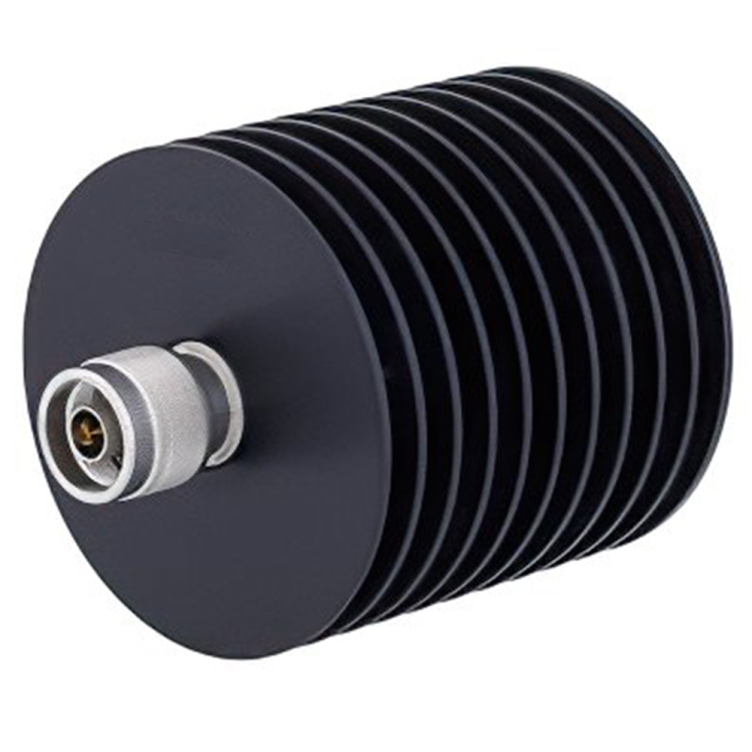

| N Termination, 5W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector, Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 5W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 5W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector, Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 5W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 5W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector, Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 5W VSWR: < 1.35@18 GHz, Typ. <1.20 |
| N Termination, 5W DC- 18 GHz Econimic |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Connector, Stainless Steel, Passivated, Heat sink, Anodized Aluminum Power: 5W VSWR: < 1.35@18 GHz, Typ. <1.20 |
