QMA Attenuator, 4.3-10 Attenuator, RNX10 Attenuator, SMP Attenuator, SSMP Attenuator, SMB Attenuator
| Product Type | Pictures | Dimensions | Specification |

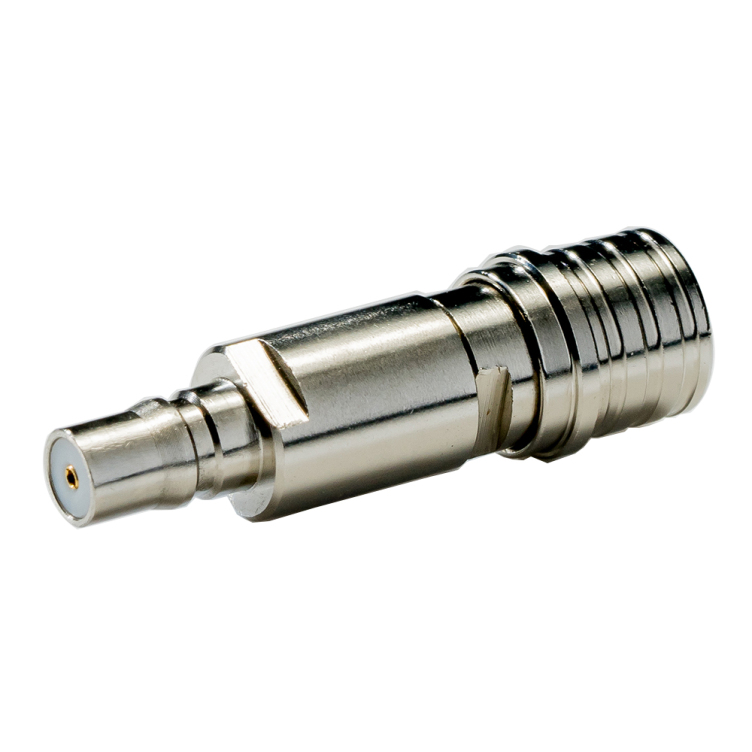

| QMA Attenuator, 2W DC- 9 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Gold plated Power: 2W VSWR: < 1.35@9 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±1.0 dB, 12-30 dB ±1.5 dB, 40 dB |
| RNX10 Attenuator, 2W DC- 8 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Gold plated Power: 2W VSWR: < 1.25@8 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±1.0 dB, 12-30 dB ±1.5 dB, 40 dB |
| 4.3-10 Attenuator, 2W DC- 8 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Gold plated Power: 2W VSWR: < 1.25@8 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±1.0 dB, 12-30 dB ±1.5 dB, 40 dB |

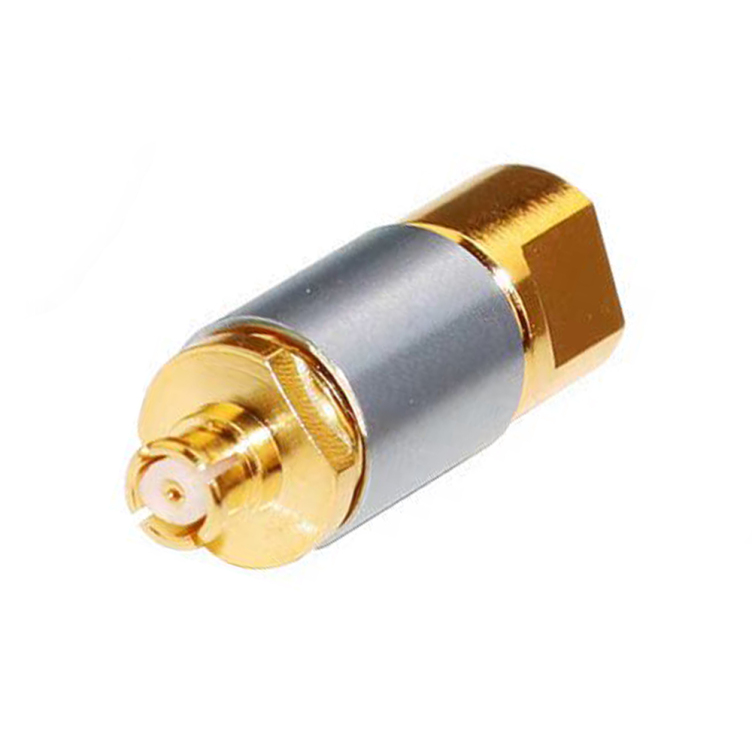

| SMP(GPO) Attenuator, 2W DC - 18 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Gold plated, Stainless Steel, Passivated. Power: 2W VSWR: < 1.35@18 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±1.0 dB, 12-30 dB ±1.5 dB, 40 dB |
| SSMP(GPPO) Attenuator, 2W DC - 18 GHz Precision |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Gold plated Power: 2W VSWR: < 1.35@18 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB ±1.0 dB, 12-30 dB ±1.5 dB, 40 dB |
| SMB Attenuator, 2W DC-4 GHz |
 |
 |
Conductor: Beryllium Copper, Gold plated Insulator: PTFE Body: Brass, Ni plated Power: 2W VSWR: < 1.25@4 GHz Attenuation Accuracy: ±0.5 dB, 1-10 dB |
